Steam Products, LLC

Elite Premier Volume Water Heater

In stock
SKU
10214

The Elite Premier VWH is a low mass volume water heater with a 316L stainless steel heat exchanger. This versatile unit has an impressive range, with 4 models reaching up to 399,000 BTUs. This floor standing or wall mount system. It is up to 98% efficient with a 10 to 1 turndown ratio.

We carry the full line of new replacement parts for HTP

Request A Quote

Description

The Elite Premier VWH is a low mass volume water heater with a 316L stainless steel heat exchanger. This versatile unit has an impressive range, with 4 models reaching up to 399,000 BTUs. This floor standing or wall mount system. It is up to 98% efficient with a 10 to 1 turndown ratio. It vents in inexpensive, easy-to-install PVC pipe, up to 200 combined feet.

Specifications - Versatile Range

Various models:
Ranging from 220,000 to 399,000 Btuh

Model Btuh / Input Range GPH @100° Rise
EP-220 VWH 44,000 -220,000 259
EP-299 VWH 60,000-299,000 344
EP-301 VWH 60,000-301,000 344
EP-399 VWH 80,000-399,000 457

More Specifications

Ultra High Efficiency: up to 97.7% Thermal Efficiency

Turndown Ratio

10 to 1 Turndown Ratio - Modulating technology matches fuel consumption to demand to provide high system efficiency even during low load conditions

Greater turndown allows the Elite Premier to match lower loads, which reduces short cycling , conserves energy and improves component reliability

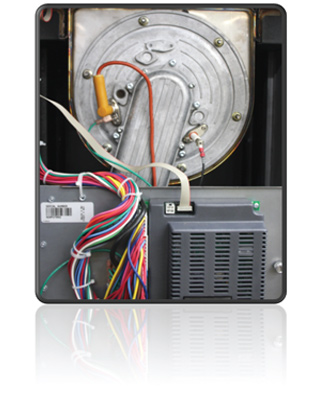

Elite Boiler Turndown Image 1

Installation Flexibility

For space saving versatility, the Elite Premier can be fastened to the floor or wall mounted.

Vents up to 200 feet of total equivalent length. Can be cascaded with 8 boilers.

Excellent Venting Options

Vents in inexpensive, easy-to-install PVC pipe, up to 200 feet of total equivalent length

Venting Options: Concentric, Sidewall, Vertical, Unbalanced

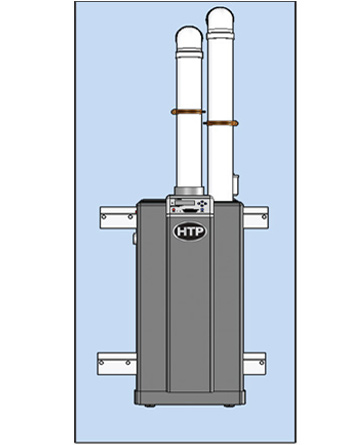

Elite Venting Illustration

Quality Design

An extremely durable 316L stainless steel heat exchanger boasts excellent heat transfer properties and resists corrosion

Control Interface

A two line 20 character LCD control panel displays easy to understand English readouts and service reminders

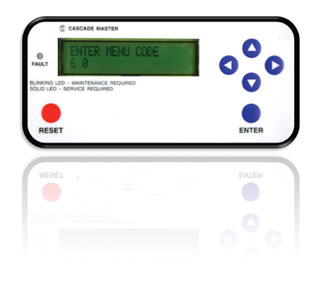

Elite Control Board Interface Graphic

Features an intelligent design that delivers domestic hot water up to 98% thermal efficiency.

As a volume water heater the Elite Premier VWH must be used with a storage tank, the SuperStor Storage Tanks from HTP increase the storage capacity of any hot water system.

SuperStor storage tanks efficiently maintain hot water with very little heat loss and can be used in almost any commercial or residential application.
