Mod Con Commercial Gas Boiler

In stock
SKU
10034

The Mod Con is a highly efficient modulating condensing boiler that operates with up to a 98% thermal efficiency rating. It is constructed with 316L stainless steel to last longer and provide better heat transfer capabilities. It also features a modulating burner with up to a 5 to 1 turndown ratio.

We carry the full line of new replacement parts for HTP

Request A Quote

Versatile Range

Two models: Ranging from 500,000 to 850,000 Btuh suitable for every commercial application

Built-in cascading capability:
A built-in sequencer allows up to eight boilers to be linked together, providing increased turndown ratios, built-in redundancy, and a total heating capacity of up to 6,800,000 Btuh

Mod Con Model BTU/Input Range Approx. Shipping Weight Gross Output BTU / hr Net I=B=R BTU / hr Thermal Efficiency
Mod Con 500 100,000 – 500,000 505 lbs. 470,000 409,000 94%
Mod Con 700 170,000-700,000 580 lbs. 686,000 572,000 97%
Mod Con 850 170,000 – 850,000 580 lbs. 799,000 695,000 94%

More Specifications

Description

The Mod Con is a highly efficient modulating condensing boiler that operates with up to a 98% thermal efficiency rating. It is constructed with 316L stainless steel to last longer and provide better heat transfer capabilities. It also features a modulating burner with up to a 5 to 1 turndown ratio.

A Low Mass Boiler with a High Efficiency

The Mod Con has up to a 98% thermal efficiency with up to a 5 to 1 turndown. Older gas furnaces may only be using as little as 60% of energy consumed. Heating is the largest energy expense in most homes accounting for 35-50% of annual energy bills in colder parts of the world. With the Mod Con, up to 98% of the dollar spent on heating is properly used to heat the building. That is real savings! It's high grade Inconel burner and 316L stainless steel modulating burner allows this unit to provide adequate heating while saving energy and money. The Mod Con is a dual flame sensing unit with reliable spark ignition. It has a heating capacity of up to 6,800,000 Btuh! Mod Con Commercial Gas Boiler

Turndown Ratio

5 to 1 Turndown Ratio - Exclusive modulating technology provides ultimate comfort, save fuel by matching comfort levels efficiently and evenly

Greater Turndown Reduce operating costs with a higher turndown ratio and reduce short cycling, eliminate fluctuations as the burner monitors conditions, matching fuel consumption to meet demand modconturndown1modconturndown2

Installation & Venting

The Mod Con has the ability to vent up to 200 ft, offering complete flexibility Lower, exhaust temperatures, due to high efficiencies, allows for the use of PVC or other plastic venting materials, saving on cost and time. Modconinstallation

Small Footprint

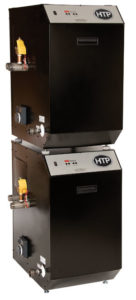

A sturdy frame and adjustable leveling feet enable units to be double stacked, making it possible to fit a high output heating system within a small spaceMod Con Double Stack Commercial BoilerMod Con Commercial Boiler Transparent Image

Quallity Design

Quality Components:
built using 316L stainless steel, the Mod Con is extra tough; with increased corrosion resistance, even in aggressive environments

Stainless Steel Construction
resulting in light weight package

Effortless serviceability:
service technicians have direct access to components through an easy to remove front cover

Case Study

Save money. Save space: Replacing five conventional atmospheric boilers with three. Mod Con 94% efficient, modulating condensing units cuts medical facility's energy usage by 38%. Stackable units take up less than half the space.modcon-case-studies

"We immediately noticed a difference at the gas meter," said building superintendent Gary Thibault. "Our savings have been substantial. During the first 10 months of operation, the new Mod Con trio cut the clinic's energy by 42%."
