Steam Products, LLC

SuperStor Glass Lined Storage Tank

In stock
SKU
0000-2

The SuperStor Glass Lined Storage Tank increases the storage capacity of any hot water system. Superstor storage tanks efficiently maintain hot water, allowing heat losses of less than 1 degree Fahrenheit per hour.

We carry the full line of new replacement parts for HTP


Request A Quote

Versatile Range

Appropriate for both residential and commercial applications available in four sizes (ranging from 50 to 175 gallons)

Plastic Jacket (Non-ASME) GL Storage Tank
GLASS LINED MODEL T&P PORTS MAX WORKING PRESSURE HEIGHT/DIAMETER GALLON CAPACITY SHIPPING WEIGHT
GL-50 3/4″ NPTF 150 PSI 52″/19 1/4″ 50 120 lbs.
GL-80 1″ NPTF 150 PSI 59″/23 1/4″ 80 165 lbs.
GL-119 1″ NPTF 150 PSI 64″/27″ 119 250 lbs.
Steel Jacketed (ASME) GL Storage Tank
GLASS LINED MODEL T&P PORTS MAX WORKING PRESSURE HEIGHT/DIAMETER GALLON CAPACITY SHIPPING WEIGHT
GL-80 1″ NPTF 125 PSI 58 5/16″/24 7/16″ 80 260 lbs.
GL-119 1″ NPTF 160 PSI 59 1/4″/28 1/4″ 119 340 lbs.
GL-175 1″ NPTF 150 PSI 67 1/4″/32 1/4″ 175 600 lbs.

More Specifications

The SuperStor Glass Lined Storage Tank increases the storage capacity of any hot water system. Superstor storage tanks efficiently maintain hot water, allowing heat losses of less than 1 degree Fahrenheit per hour. The glass lined steel tanks are specially formulated with high temperature porcelain enamel and fitted with heavy duty magnesium anode rods to resist corrosion and increase tank life, perfect for commercial and residential applications.

Value

You can depend on HTP glass lined storage tanks, they are designed for optimum energy efficiency, durability and long lasting performance

Best overall value for the best overall price

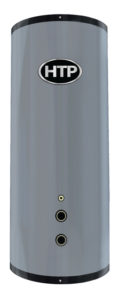

SuperStor Glass Lined Storage Tank Image

Thermal Insulation

HTP SuperStor storage tanks efficiently maintain hot water with thick water blown foam insulation, less than 1 degree heat loss Fahrenheit per hour

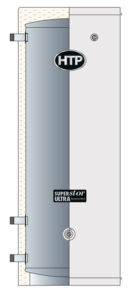

SuperStor Glass Lined Storage Tank Illustration

Quality Design

Low standby losses:
Reducing standby loss means increasing efficiency, thanks to thick environmentally safe foam insulation

Quality construction:
Magnesium anode rods protect the glass-lined steel tank from corrosion

Aesthetically pleasing:
Available in attractive and durable metal Jacket ASME models and plastic jacket Non-ASME models

SuperStor Glass Lined Storage Tank Illustration

Warranty

5 Year Limited Warranty

backed by the manufacturer

Warranty
5 Year Warranty Ribbon Graphic
